TUG T150 CCD Test

Imaging CCD (SDSU)

CCD type Loral llick3
Coating: Cat-C, 700 A HfO₂
Pizel size 15 microns

Amplifiers:

AR: (right amp.) AL: (left amp.)
HCTE: 0.999999 0.999991
GAIN: 1.645 e/ADU 1.527 e/ADU
VCTE: 0.999988 0.999987
GAIN: 1.620 e/ADU 1.520 e/ADU
Read Noise (DN): 6.000887 6.693189
Read Noise (e): 9.871459 10.220499

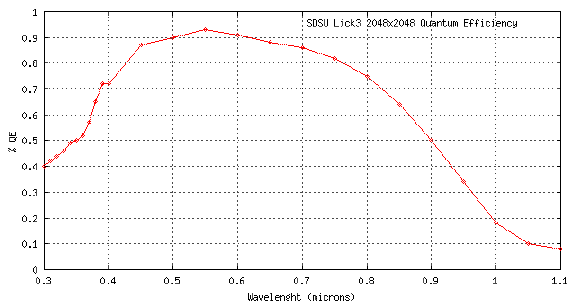

Quantum Efficiency of the chip:

CCD type	Loral llick3
Coating:	Cat-C, 700 A HfO₂
Pizel size	15 microns

	AR: (right amp.)	AL: (left amp.)
HCTE:	0.999999	0.999991
GAIN:	1.645 e/ADU	1.527 e/ADU
VCTE:	0.999988	0.999987
GAIN:	1.620 e/ADU	1.520 e/ADU
Read Noise (DN):	6.000887	6.693189
Read Noise (e):	9.871459	10.220499
